Auto Fahrrad Halterung Für Steckachse / Schnellspanner
Photos: Auto Fahrrad Halterung Für Steckachse / Schnellspanner
Item description: Auto Fahrrad Halterung Für Steckachse / Schnellspanner
How did I get this idea?
My boyfriend and I were on our way to Lake Garda and while loading the bikes (into his Seat Alhambra) we came up with the idea of mounting the bikes better and more securely in the car - so we designed this bike holder and 3D printed it the evening before we arrived.

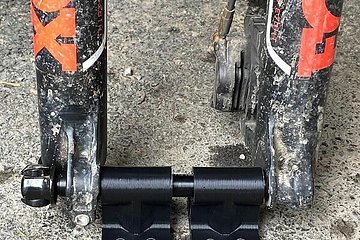

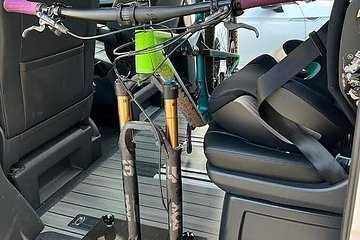

This enabled us to transport our e-bikes safely in the car in an upright position (with the front wheel removed). The fork is fixed quickly and easily with the original quick-release axle.

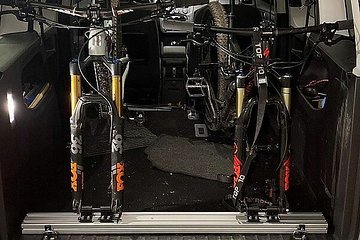

We used SPAX screws to mount this bike fork mount on a wooden board (be sure to use washers when using countersunk screws!), for the other variant we mounted it on aluminum profiles (aluminum profile 40x60 or 40x80 from a local hardware store). Some also use so-called airline rails or wood, screen-printed or multiplex panels)
The diameter of the axle can be
5mm / 7mm / 9mm / 10mm / 11mm / 12mm / 15mm / 20mm be
or also a special size as desired
-> please specify the desired diameter :-)
The bracket always consists of a SET / 2 individual brackets, so the width can be adjusted variably, regardless of whether the wheel is with or without Boost Standard . . .
Dimensions / measurements:
The arrangement of the holes on the base plate is 40 x 20 mm.
The fixing / through holes have a diameter of 6.4 mm
The dimension of the lower edge of the bracket to the center of the axle hole is 42 mm
One bracket is 45mm wide
The material was specially developed for industrial applications and is characterized by its high UV and weather resistance. It is therefore particularly suitable for use in the automotive sector and outdoors. The material is fire retardant according to UL94 HB.
Bike axles / MAXLE / Bike thru axle mount for Fox / Rockshox / Suntour and many more.
Supplied WITHOUT the FOX 36 or 38 / bikes / thru axle / accessories / rails / screws shown - just the two blocks for self-assembly :-)
Compared to the other systems available on the market:
- (much) cheaper
- no extra fork mount, thru axle adapter or extender required
- variable in width
- quick and easy to fit
- Gentle on the wheel and axle thanks to the plastic
Please note that the bracket is only made for the interior (no mounting on open trailers or the car roof). Please use suitable screws and washers when mounting. Do not drill the holes. Please secure the mountain bike / bicycle / e-bike additionally.
9. shipping Germany
6.- Shipping Austria
as insured package
from 3 sets you will get a discount :-)
Questions by email -> patric.hanser AT gmail DOT com
My boyfriend and I were on our way to Lake Garda and while loading the bikes (into his Seat Alhambra) we came up with the idea of mounting the bikes better and more securely in the car - so we designed this bike holder and 3D printed it the evening before we arrived.
This enabled us to transport our e-bikes safely in the car in an upright position (with the front wheel removed). The fork is fixed quickly and easily with the original quick-release axle.
We used SPAX screws to mount this bike fork mount on a wooden board (be sure to use washers when using countersunk screws!), for the other variant we mounted it on aluminum profiles (aluminum profile 40x60 or 40x80 from a local hardware store). Some also use so-called airline rails or wood, screen-printed or multiplex panels)
The diameter of the axle can be
5mm / 7mm / 9mm / 10mm / 11mm / 12mm / 15mm / 20mm be
or also a special size as desired
-> please specify the desired diameter :-)
The bracket always consists of a SET / 2 individual brackets, so the width can be adjusted variably, regardless of whether the wheel is with or without Boost Standard . . .
Dimensions / measurements:
The arrangement of the holes on the base plate is 40 x 20 mm.
The fixing / through holes have a diameter of 6.4 mm
The dimension of the lower edge of the bracket to the center of the axle hole is 42 mm
One bracket is 45mm wide
The material was specially developed for industrial applications and is characterized by its high UV and weather resistance. It is therefore particularly suitable for use in the automotive sector and outdoors. The material is fire retardant according to UL94 HB.
Bike axles / MAXLE / Bike thru axle mount for Fox / Rockshox / Suntour and many more.
Supplied WITHOUT the FOX 36 or 38 / bikes / thru axle / accessories / rails / screws shown - just the two blocks for self-assembly :-)
Compared to the other systems available on the market:
- (much) cheaper
- no extra fork mount, thru axle adapter or extender required
- variable in width
- quick and easy to fit
- Gentle on the wheel and axle thanks to the plastic
Please note that the bracket is only made for the interior (no mounting on open trailers or the car roof). Please use suitable screws and washers when mounting. Do not drill the holes. Please secure the mountain bike / bicycle / e-bike additionally.
9. shipping Germany
6.- Shipping Austria
as insured package
from 3 sets you will get a discount :-)
Questions by email -> patric.hanser AT gmail DOT com
automatically translated

Buy Auto Fahrrad Halterung Für Steckachse / Schnellspanner
€15
Details & Specifications : Auto Fahrrad Halterung Für Steckachse / Schnellspanner
Quantity | 1 |
---|---|
Brand | Auto |
Condition | gebraucht, wie neu |
Shipping Costs | €9 |
Pickup | Yes |
Views | 916 × |
---|---|
Current viewers | 1 |
Published | Apr 15, 2025 5:15 PM |
Expires | Apr 15, 2026 5:15 PM |
