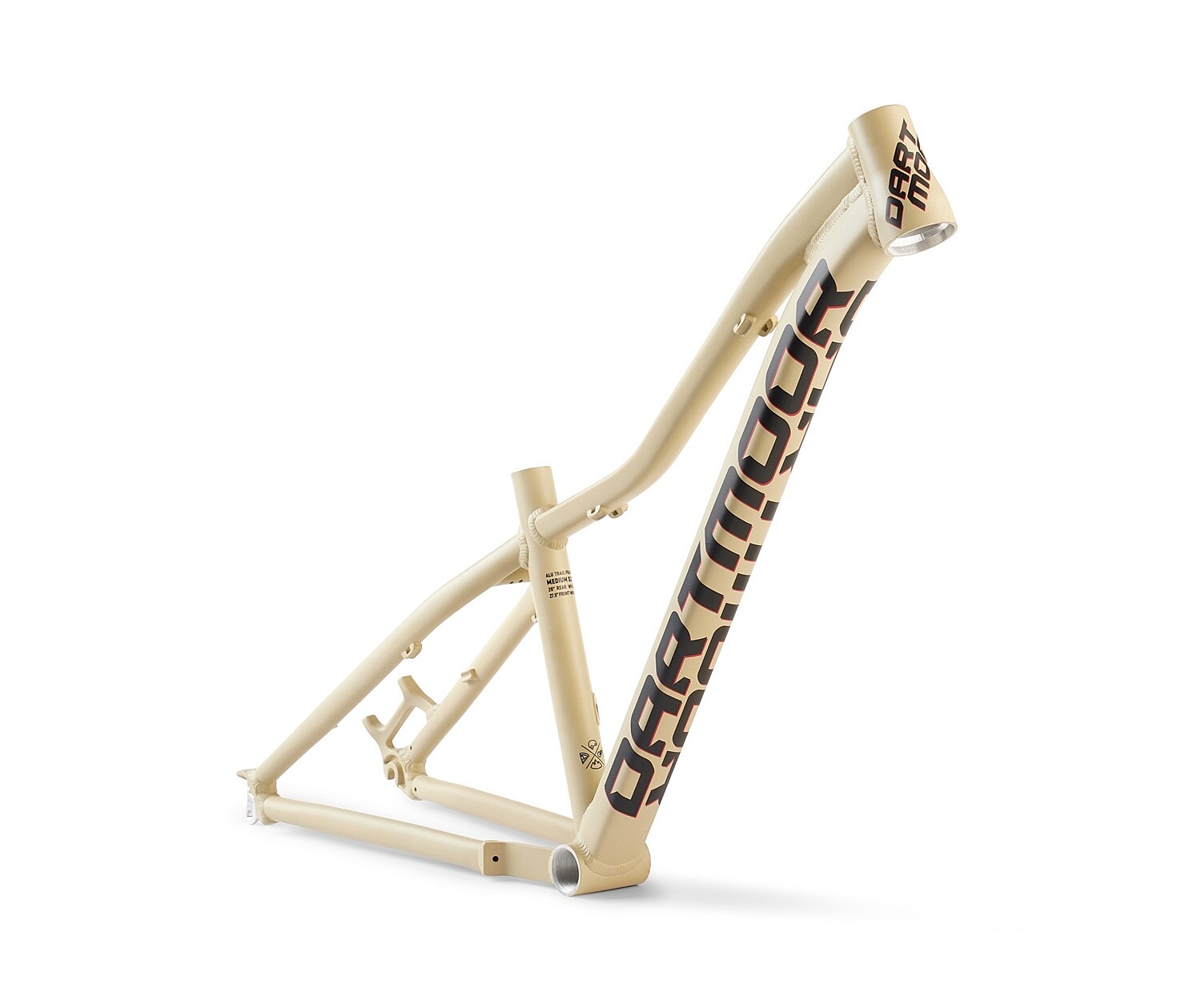

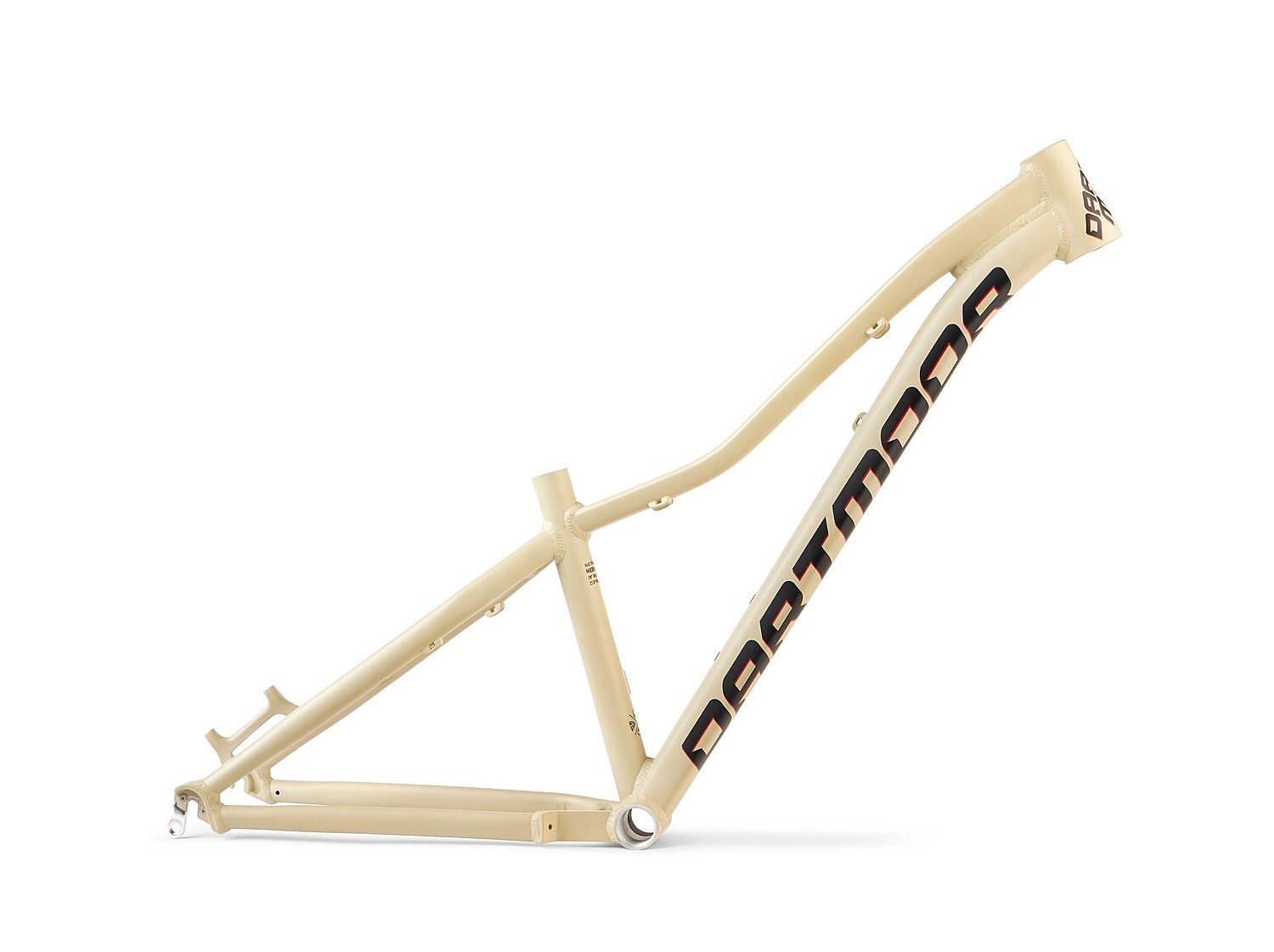

Dartmoor Kinder MTB Rahmen Sparrow Junior Mullet 27.5"/26" | Matt Sand Storm

27.5"/26" wheel size for young people with a height of 140 - 160 cm

Seeing a kid's big smile while shredding the trails is inspiring. That's why we're introducing a new frame series aimed at smaller riders.

We've opted for a mullet setup with a smaller rear wheel to offer more agility and fun, while a larger front wheel provides more comfort, traction and confidence for those first steps into the MTB world.
In the scope of delivery

derailleur hanger
Small parts for brake hose and derailleur cable attachment

Geometry
Reach (mm) 405
Stack (mm) 595
Seat tube (mm) 336
Top tube (mm) -
Effective top tube (mm) 531
Chainstays (mm) 410
Head tube (mm) 100
Steering angle (°) 66
Effective seat tube angle (°) 78
Bottom bracket drop (mm) 35/57
Wheelbase (mm) 1099
Protrusion (mm) 650

Technical data
Wheel size: 27.5"/26"
Material: AL 6061-T6
Weight: 2.05kg
Colors: Matt Sand Storm
Sizes: one size
Recommended suspension fork: 120-140mm
Maximum chainring size: 32 t
Max. Tire size: 27.5 x 2.4" / 26 x 2.4"
Rear axle: 135x10mm
Seat post/seat clamp: 30.9mm/34.9mm
Headset: IS42/IS52
Brake mount: PM 160
max. disc brake: 180
Bottom bracket type: BSA/euro 73
