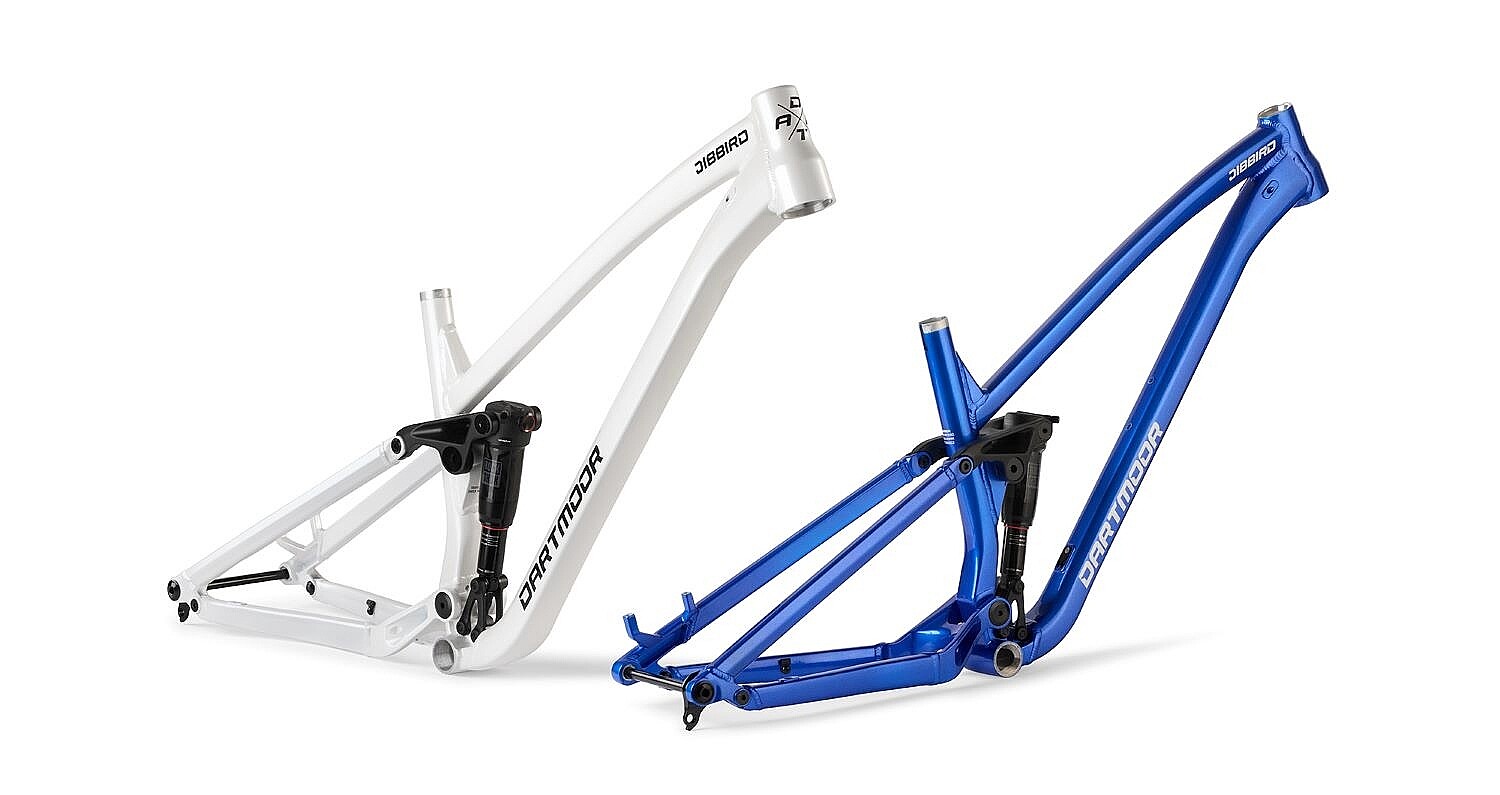

Dartmoor Slopeduro Rahmen Jibbird | ohne Dämpfer

27.5" wheel size and 140 mm travel
Jibbird frame - a perfect start to building your jib machine! When slopeduro became a discipline that could be described as a mix of slopestyle and playful trail riding, we at Dartmoor knew that we needed a suitable frame. We have adapted our Rocbird frame so that it allows for more tricks.
Now it's your turn to build whatever you want out of it! Need some inspiration? Just check out our Jibbird bike option!
The lightweight construction and progressive 140 mm rear wheel travel are more than enough to handle bigger jumps, while the playfulness of the 27.5 inch wheels keeps the bike nimble.
Now it's up to you to increase the fun factor on the trails!
Included in delivery

• Rear axle 148x12 mm
• derailleur hanger SRAM UHD
• Shock mounts 185x55mm installation dimension
• Small parts for brake line and shift cable attachment

Geometry
Reach (mm) 445
Stack (mm) 620
Seat tube (mm) 395
Top tube (mm) -
Effective top tube (mm) 563
Chainstays (mm) 430
Head tube (mm) 120
Steering angle (°) 67
Effective seat tube angle (°) 76
Bottom bracket drop (mm) 25
Wheelbase (mm) 1181
Protrusion (mm) 740


Technical data
Wheel size: 27.5"
Material: AL 6061-T6
Shock mount: Trunnion / 22.2x8mm
Weight: 3.45kg (w/o shock)
Colors: Glossy White Pearl, Glossy Cobalt Blue
Sizes: one size
Shock options: Rock Shox Deluxe Select air shock 185x55mm
Suspension travel: 140 mm
Recommended suspension fork: 140-160mm
Shock mounting dimension: 185x55mm
Maximum chainring size: 34 t
Max. tire size Tire size: 27.5 x 2.5"
Rear axle: 148x12mm
Seat post/seat clamp: 30.9mm/34.9mm
Headset: IS42/IS52
derailleur hanger: SRAM UDH
Brake mount: PM 180mm
max. disc brake: 203
Bottom bracket type: BSA/euro 74
