Calibre Triple B

Caliber Triple B 2018

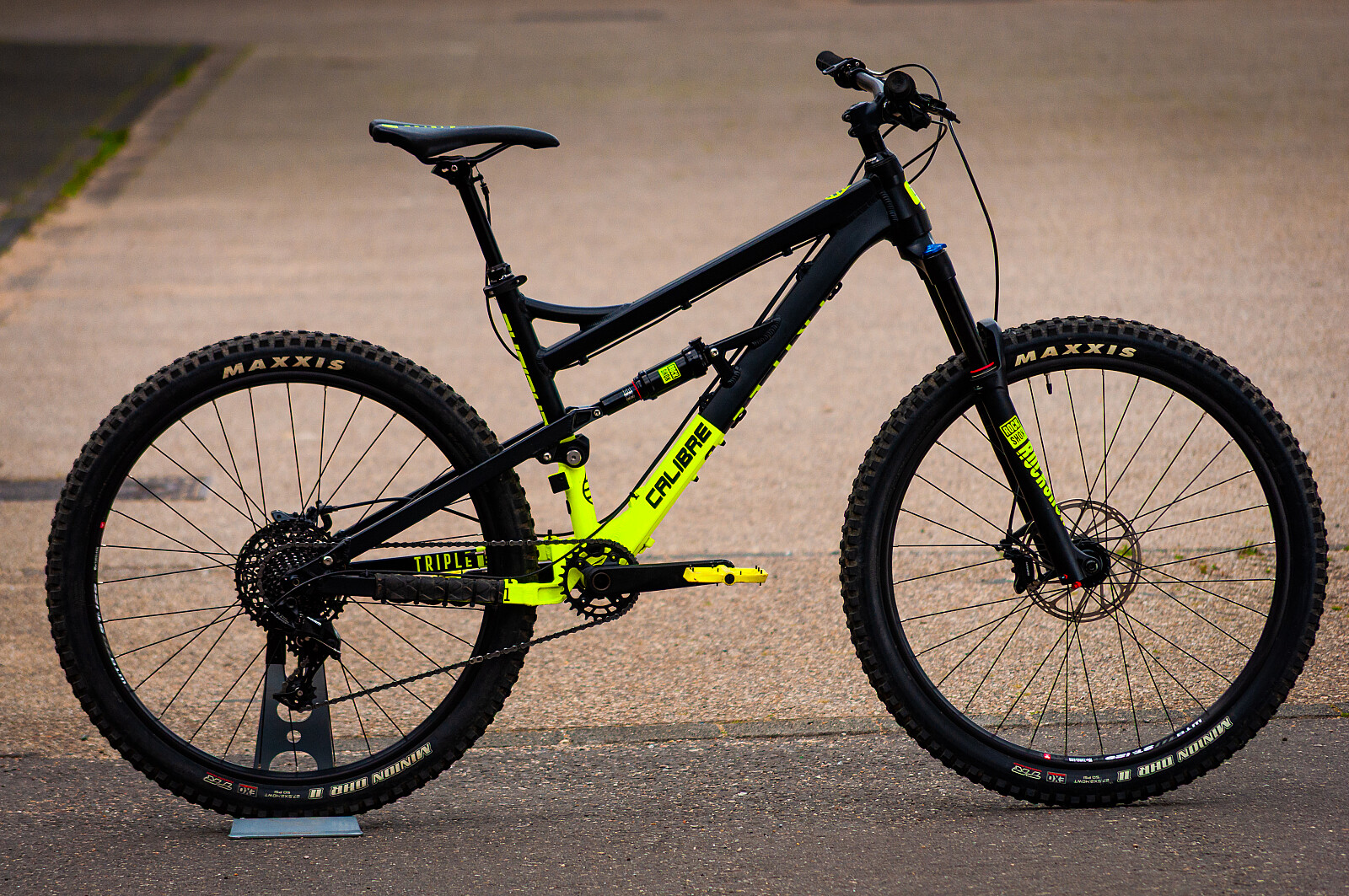

I am selling my very little ridden Calibre Triple B from 2018 in frame size M. The bike is in very good condition, suspension elements are both fresh from a major service.

Intended use
The bike is very playful and light with 140mm front and 130mm rear as well as 27.5 wheels and is a lot of fun on flowing trails as well as easy enduro trails. The bike is very efficient and drive-neutral and would also cut a fine figure in downcountry terrain with even lighter tires.


Highlights
Compared to the original equipment, the fork has been fitted with a larger negative air chamber from Symion (similar to a Rockshox B1 air chamber), so that the fork responds much more smoothly and offers more support in the middle of the suspension travel.

In addition, the 32T chainring has been swapped for a 28T chainring (for the really tough climbs), so that the shortest gear ratio is similar to a 12-speed with a 32T chainring despite the 11-speed cassette.
Grips and tires have also been replaced.

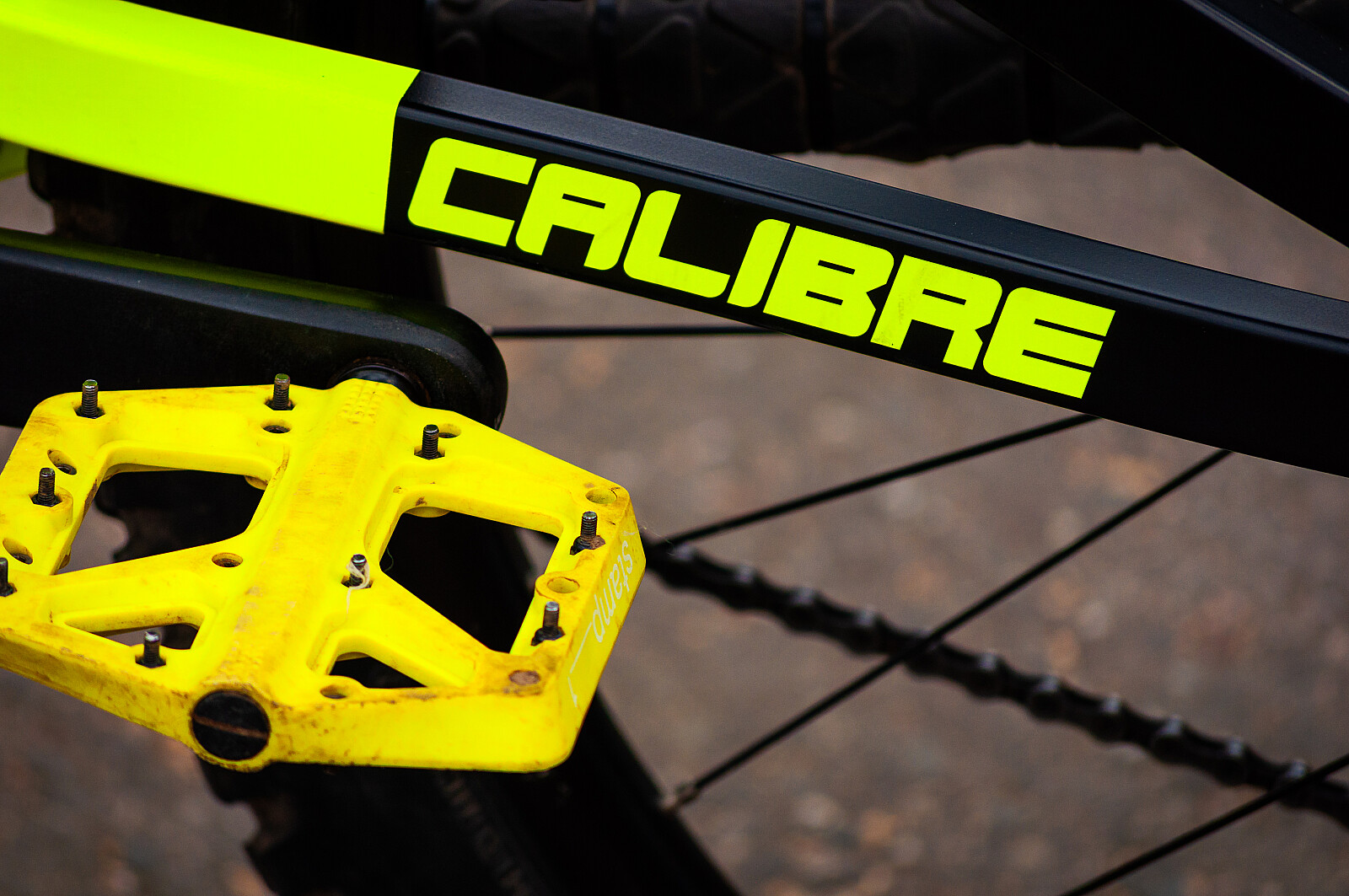

The pedals were replaced with Crankbrothers Stamp 1 V1, on which longer pins were installed to make the pedal more convex -> grip just like on Stamp 1 V2/ Stamp 3!

The kickstand in the picture is not included in the purchase ;)

Collection
Pickup from Düsseldorf would be best! Otherwise there are additional shipping costs.


Geometry
Frame size M

• Reach: 429mm
• Stack: 577mm
• Steering angle: 66 degrees
• Seat tube: 445mm
• Top tube: 601mm
• Head tube: 115mm
• Seat angle: 73 degrees
• Chainstays: 436mm
• Bottom bracket offset: 18mm

Equipment (changes to the original equipment have been added)

Frame
6061 hydroformed alloy, tapered head tube, forged one piece rocker link, 130mm rear travel

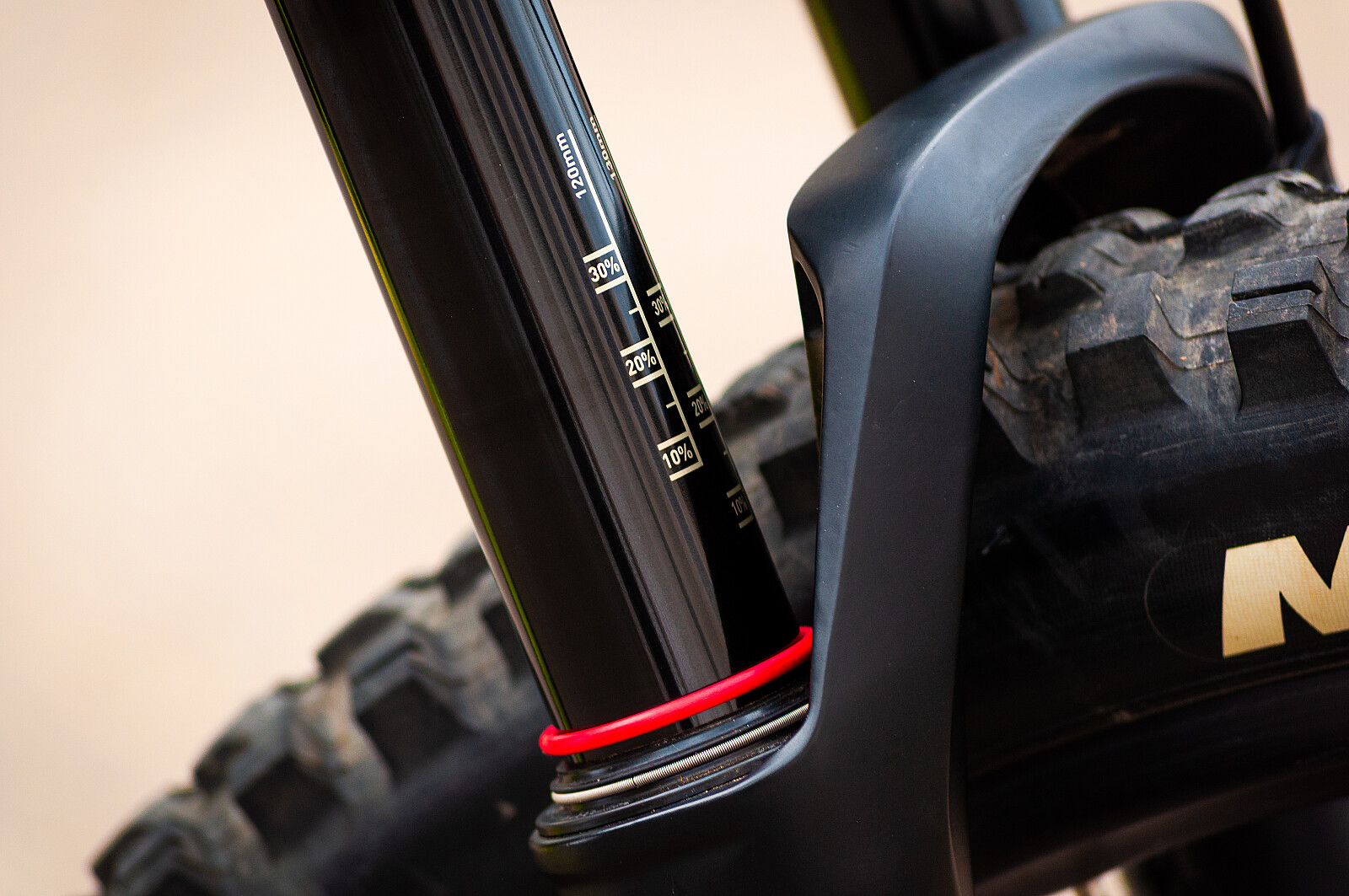

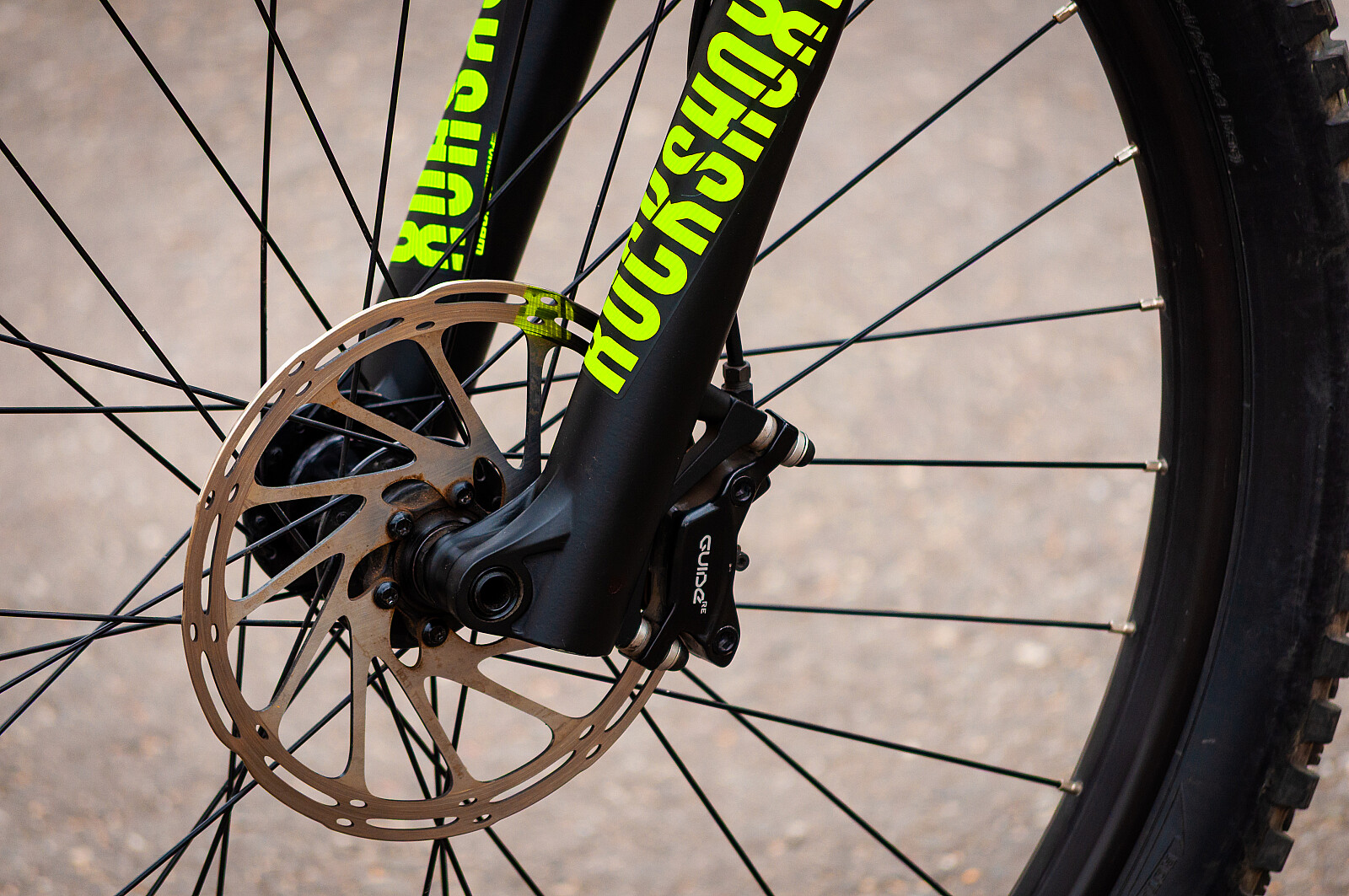

Fork
Rock Shox Reba RL solo air 140mm travel with tapered alloy steerer and 15mm maxle. Axle to crown is 505mm with 42mm offset -> With Symion Tuning air chamber

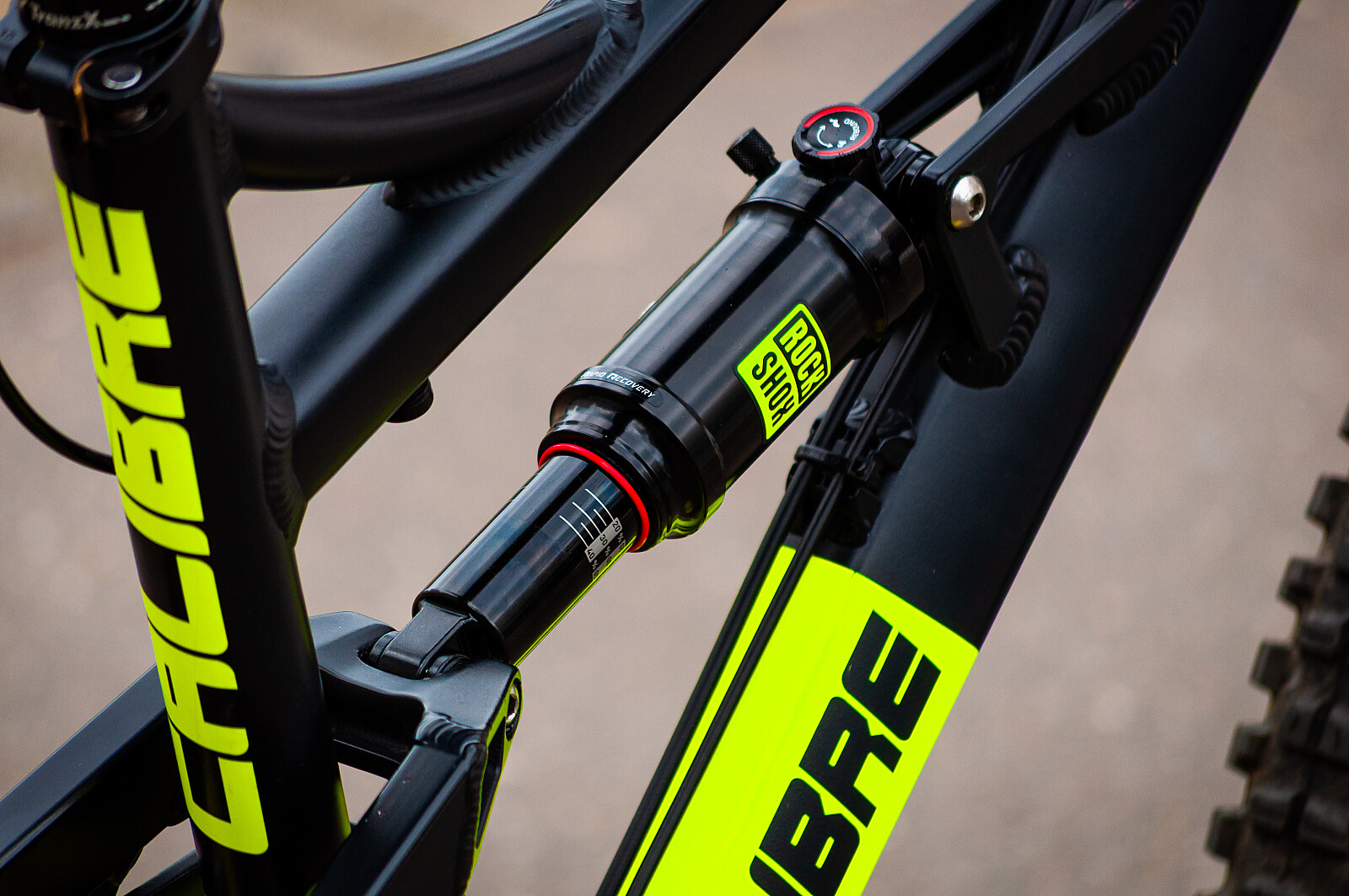

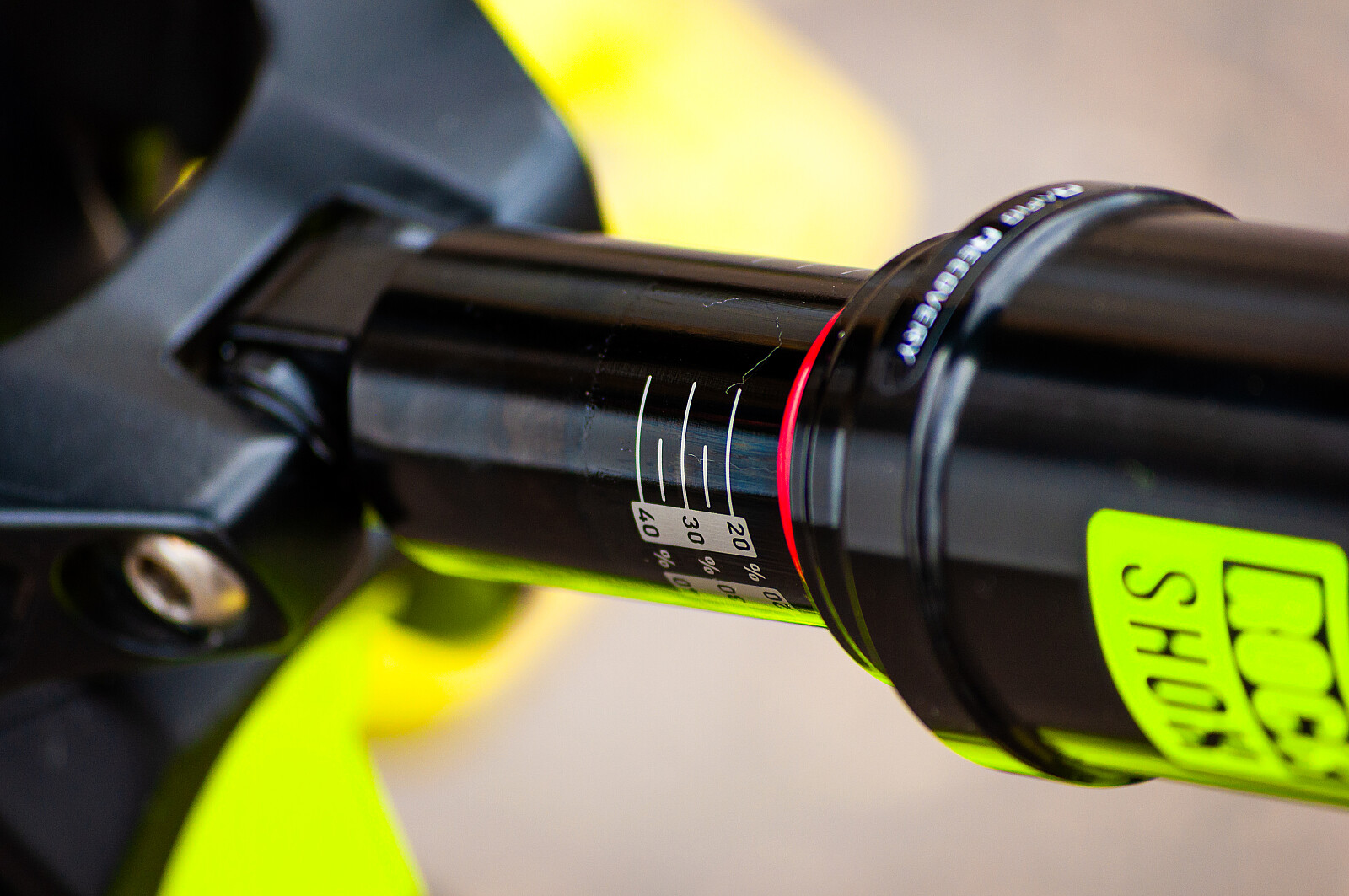

Rear shock
Rock Shox Monarch R (M/M tune) 51mm stroke with 190mm eye to eye.

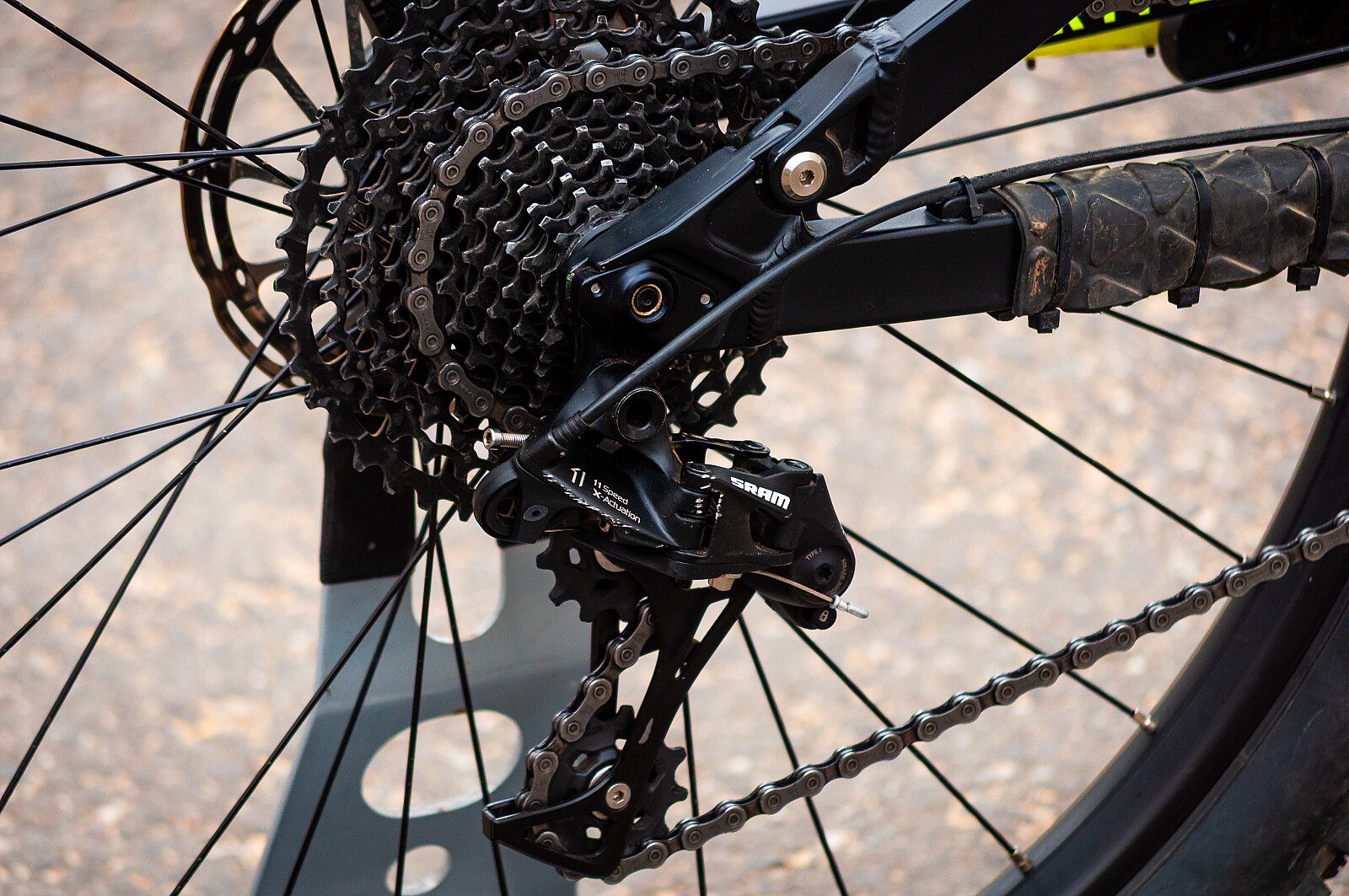

Drivetrain
SRAM NX 1X11ShiftersSRAM NX

Rear Derailleur
SRAM NX

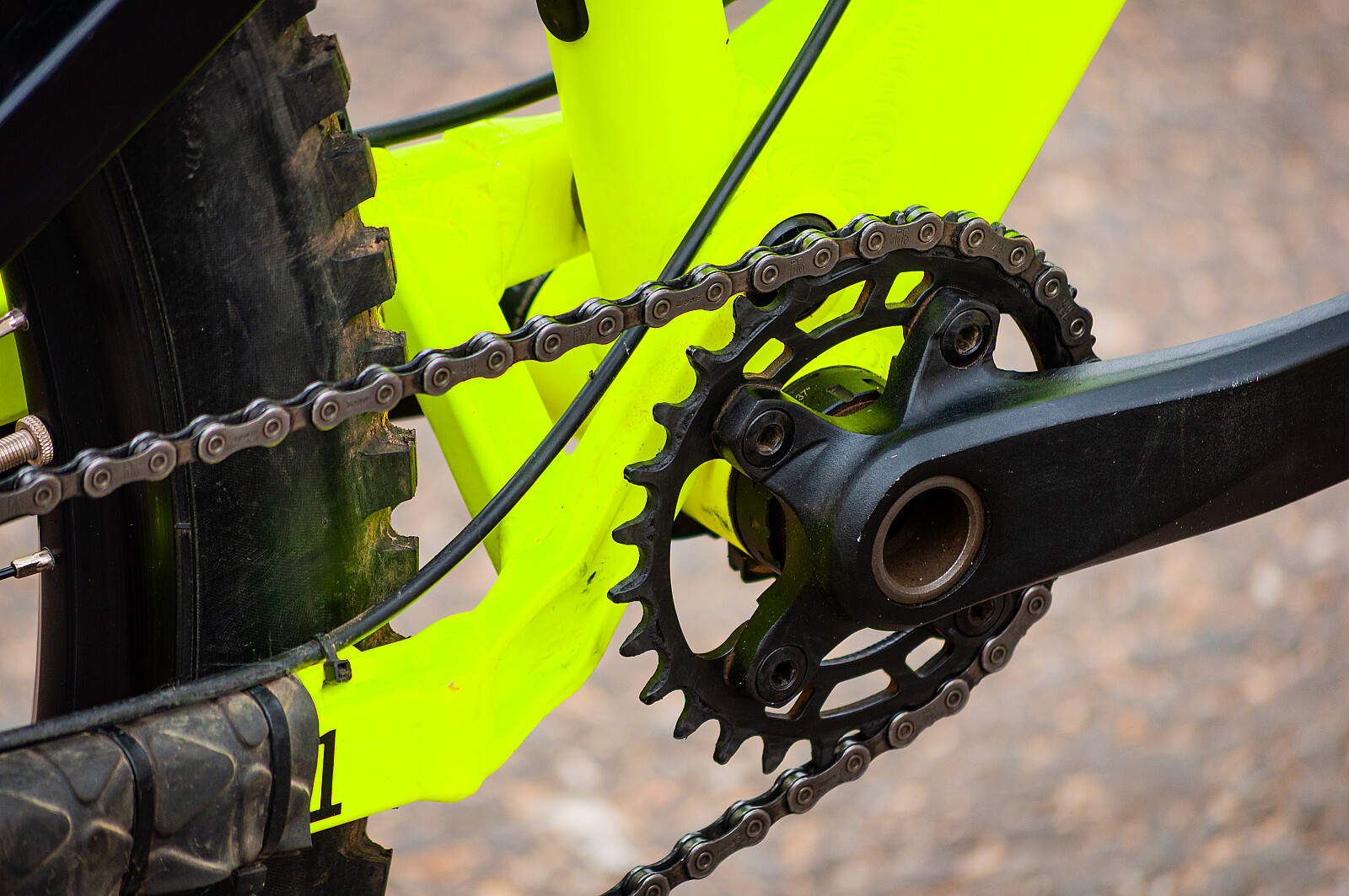

Chainset
Blackspire Snaggletooth 28T Narrow Wide

Bottom Bracket
External BS threaded.

Cassette
SRAM PG1130 11-42

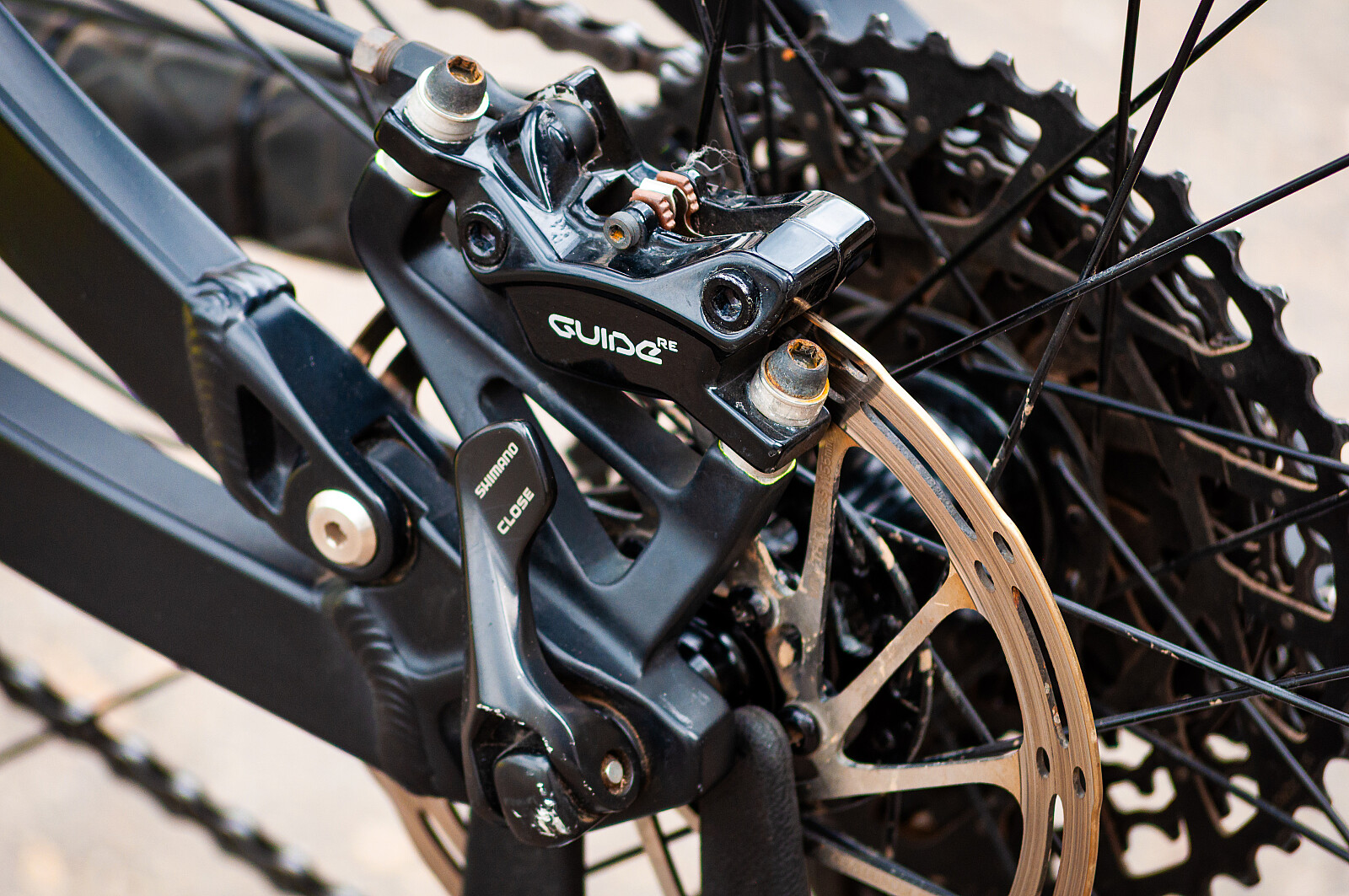

Brakes
SRAM Guide T 180 front and 160 rear rotor

Rims
WTB ST i29 32H tubeless ready

Tyres
Maxxis Minion DHR 2 Exo 2.4"

Front hub
Formula 15mm Thru axle

Rear hub
Shimano 12 X 142 Thru axle

Stem
50mm

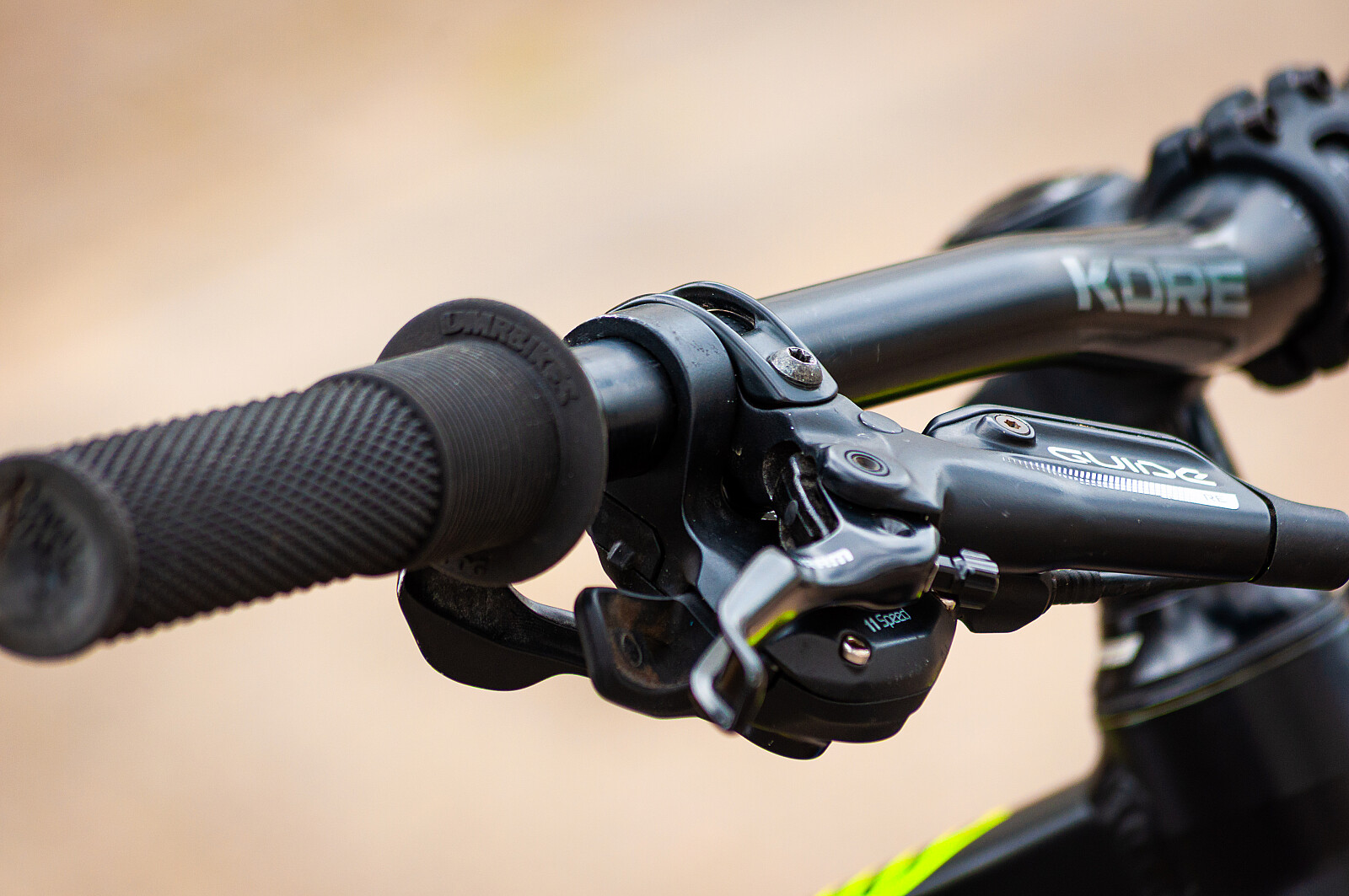

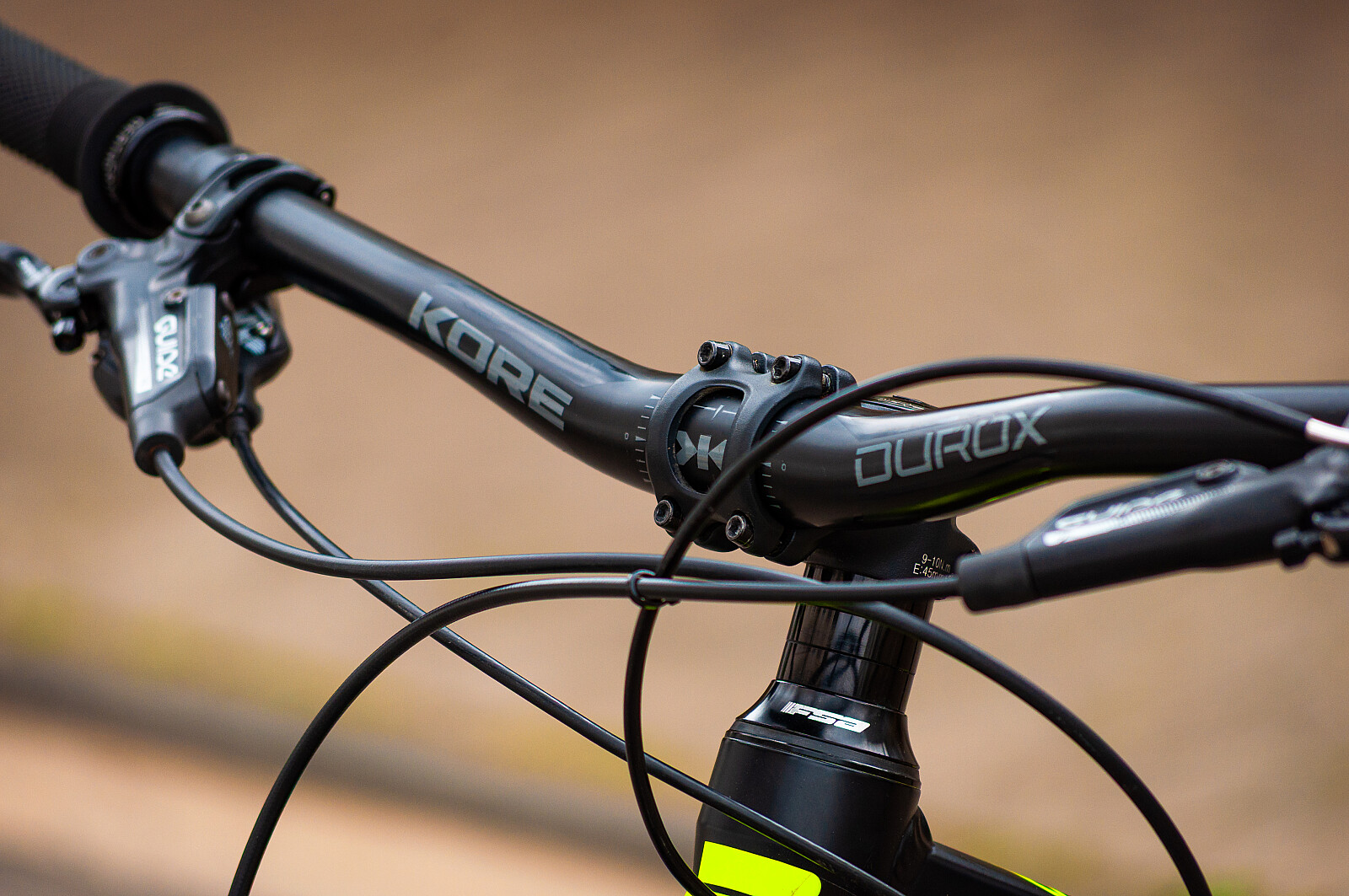

Bars
Kore Durox 780mm wide

Headset
FSA Orbit tapered No. 57E ZS44 top cup & ZS56 lower cup

Headset upper bearing
FSA bearing36 x 45, 1 1/8" - Code TH-873E (I.D-30.2mm, O.D-41mm, Height 8mm.)

Headset lower bearing
FSA bearing 36 x 45, 1.5 - Code TH073 (I.D-40mm, O.D-51.8mm, Height-8mm.)

Saddle
Caliber Trail saddle

Seatpost
Trans X dropper

Pedals
Crankbrothers Stamp 1 V1 with longer pins
